Floorstanding LCD Touch Screen Digital Signage Display

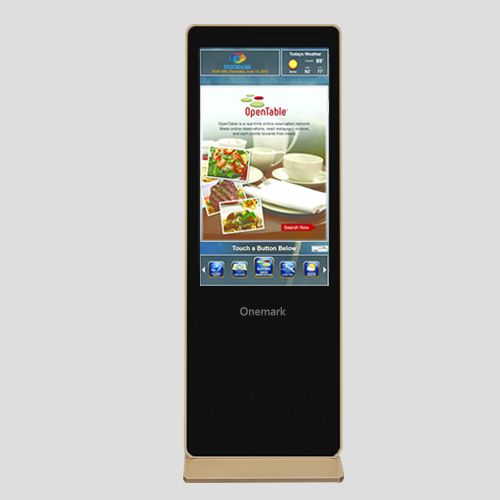

Onemark 49inch Freestanding LCD Advertising Touch Screen Display kiosk with hardware and software all-in-one solution. Easy to be installed and operated. Popular for shopping mall, chain store, supermarket, Campus, Hotel lobby, Hospital, transportation etc. for displaying advertisement, information, brand promotion, location, other information querying etc.

Hardware features:

●LG brand panel TFT type. Resolution 1920*1080;

●Built-in computer. Support Windows/Android OS (optional);

●Support WIFI and RJ45;

●Infrared IR touch. Optional PCAP capacitive touch;

●Floor-standing installation;

●Can add wheels;

●Support OEM service, customize design, color and logo;

LG brand panel TFT type; Resolution 1920*1080; 3.5mm tempered glass; Infrared IR touch. Optional PCAP capacitive touch. Support customizing LOGO.

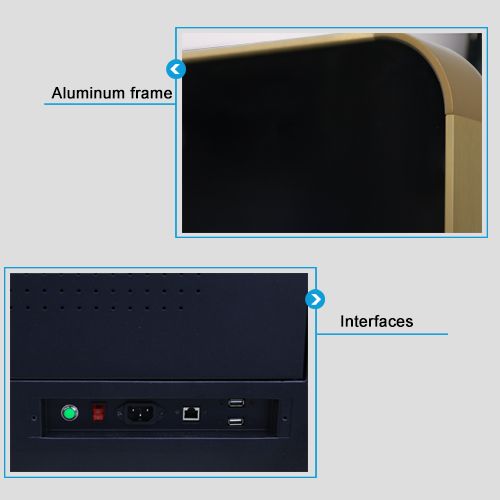

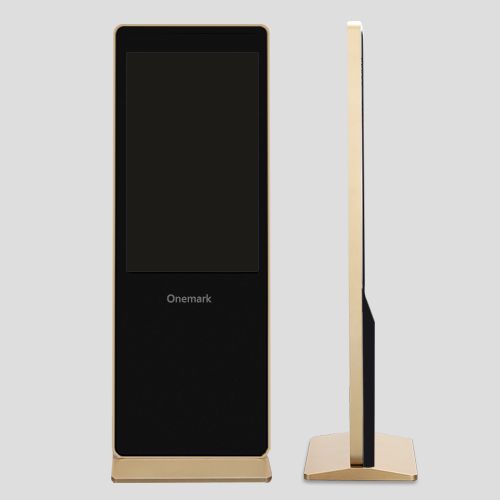

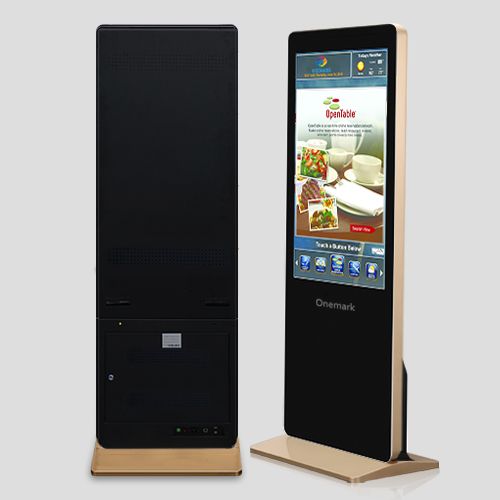

Display shell: metal plate case and aluminum frame. The standard color is black shell and golden frame. Support customizing color.

Proper ventilation design. All electronic parts inside the door with the lock for easy to do after-sales maintenance. Free standing installation (can add wheels). Base is packaged separately with screen body to save shipping cost.

Main ports of kiosk: USB, HDMI output, RJ45.

(optional these ports are put inside or exposed outside).

Optional Windows, Android OS or HDMI Input.

Windows: 1037U/J1900/i3/i5/i7 CPU, RAM 4G/8G/16G, SSD 64G/128G;

Android OS: 5.1 or 7.1; RK3288/3399 quad core CPU, 2G/4G RAM, 8G/16G storage;

Main Specification

Panel	Size	43 Inch
	Type	TFT
	Brand	LG
	Display Size	941.18*529.416mm (H*V)
	Display Ratio	16:9
	Resolution	1920*1080
	Brightness	450nits
	Contrast Ratio	1100:1
	Visual Angle	89/89/89/89
	Response Time	10ms
Touch Screen	Infrared IR touch (optional PCAP Capacitive touch)
	10 points (optional)
Protection glass	3.5mm anti-explosion tampered glass
Computer (optional)	Windows: 1037U/J1900/i3/i5/i7 CPU, RAM 4G/8G/16G, SSD 64G/128G; (optional)
	Android OS: 5.1 or 7.1; A20/3188/3288/3399 quad core CPU, 1G/2G RAM, 8G/16G storage; (optional)
Network	Support WIFI, RJ45, optional 3G/4G
Ports	USB, VGA, RS232, Optional HDMI input
Speaker	10W*2
Voltage	AC100-240V 50/60Hz
Working Temperature	0-40℃
Language	Support English and multiple national language
Power Plug standard	Optional standards (European, American etc.)
Shell material	Metal plate + aluminum frame
Shell color	Black+ silver frame
Installation	Free standing
Model Dimension	1760mm*633mm*59.7mm(base: 633mm*400mm)
Night Weight	45KG

With Onemark Digital Signage software can support the totem display:

Support function features:

● Realize remote multi-distribution play and centralized management.

● Support multi terminals, set all terminals to play the same content or diversified contents.

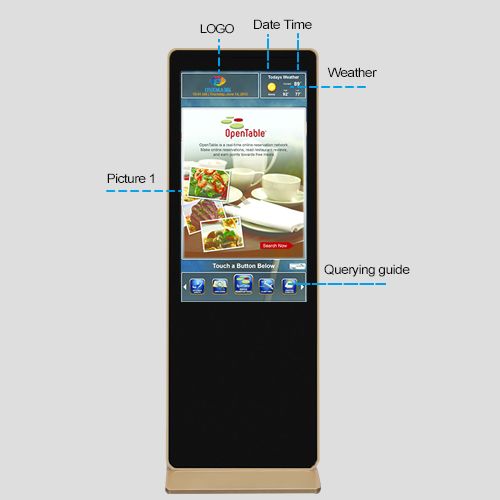

● Split screen to different areas to display pictures, videos, weather, date and time, logo, scrolling subtitle.

● Control display time, schedule remote power on/off.

● Split screen for brand logo, weather, date & time, video, pictures, website, scrolling subtitles.

● Easy to operate. User-friendly.

Especially suitable for brand stores or chain stores that have many display terminals across the city or

Country and need centralized management to promote brand value via unified advertisement releasing Service.

Package: optional standard carton box, cardboard box, fumigation-free wooden case, wooden, flight case.
