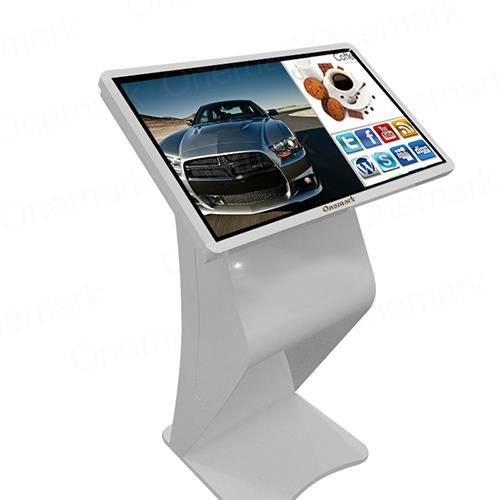

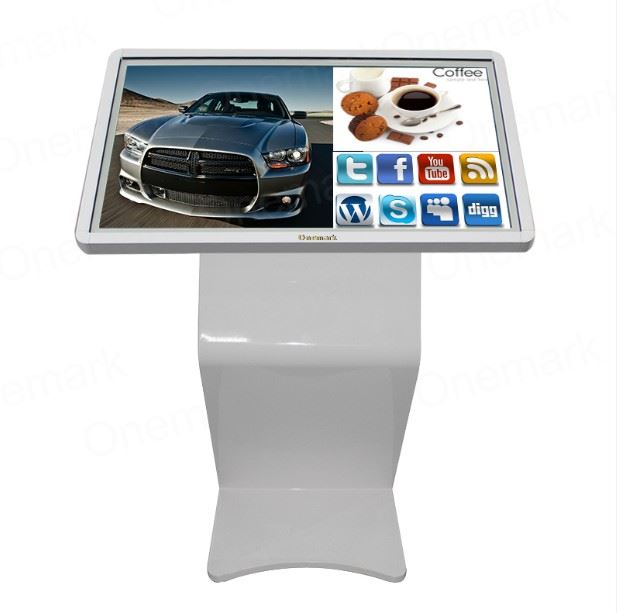

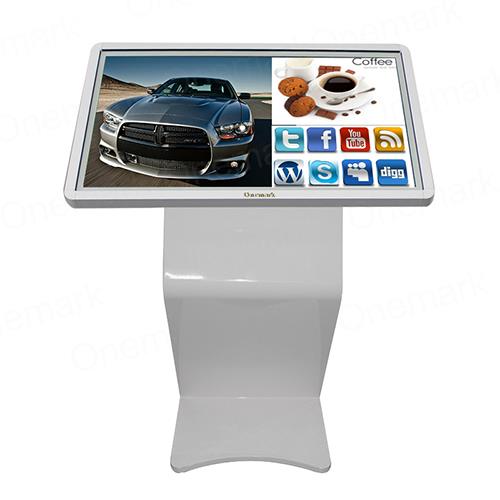

Library Lobby Hotel Mall Bank Company Airport Indoor Self-service Query Kiosk

Onemark 43 Inch Digital Signage Information Inquiry Display with hardware and software all-in-one solution. Easy to be installed and operated With PCAP capacitive touch 10 points.

Send Inquiry

Product Details

Digital Signage Information Inquiry Display

Onemark 43 Inch Digital Signage Information Inquiry Display with hardware and software all-in-one solution. Easy to be installed and operated With PCAP capacitive touch 10 points. Suitable for shopping mall, chain store, supermarket, Campus, Hospital, transportation, restaurant, library, museum etc. industries. For query information, map, location info, brand promotion info, dishes, goods details etc.

Hardware features:

●LG brand panel TFT type. Resolution 1920*1080;

●Built-in computer. Support Windows/Android OS (optional);

●Support WIFI and RJ45;

●PCAP/Capacitive touch screen 10points; Optional IR touch.

●Support OEM service, customize design, color and logo;

LG brand panel TFT type; Resolution 1920*1080; 3.5mm tempered glass with PCAP capacitive touch 10 points. Optional Infrared IR touch. Support customizing LOGO.

Shell: metal plate case. The standard color is white. Optional black, silver, golden etc. Support customizing color.

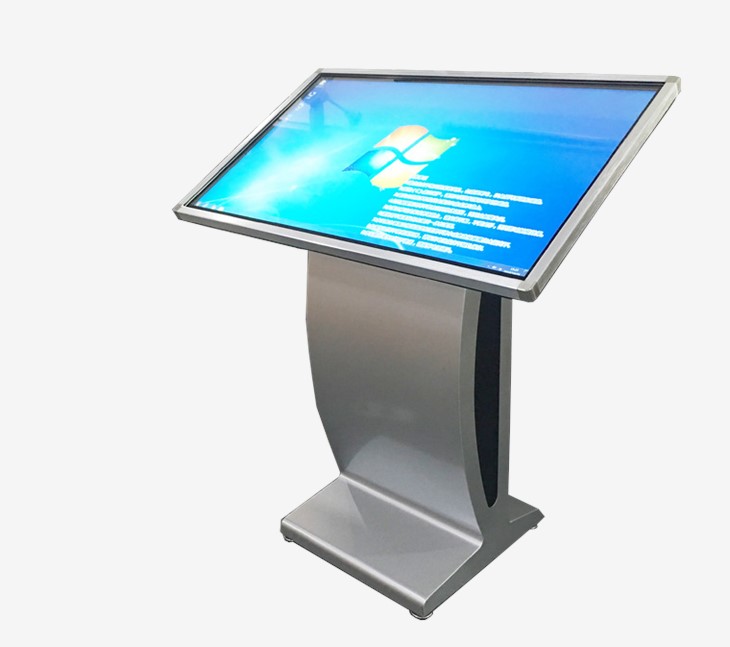

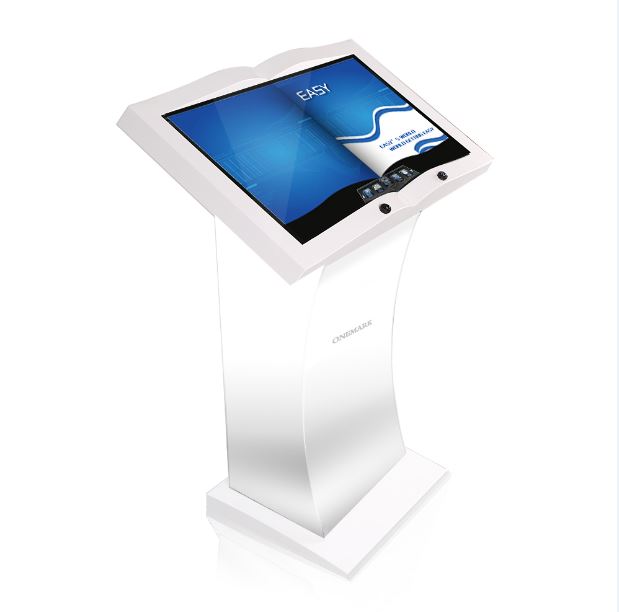

Available Size: 27" 32", 43", 49", 55", 65"

image005(001)

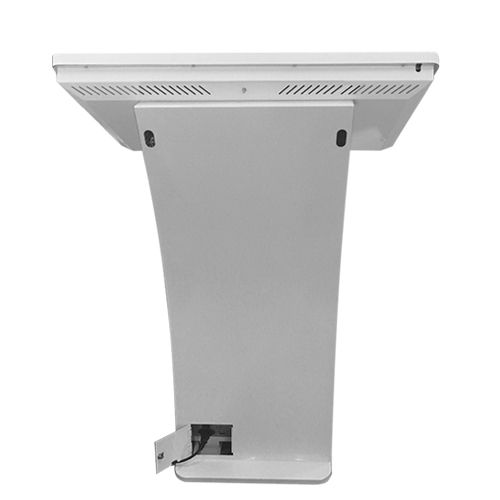

This is the back side. There is the security lock to protect interfaces to be any unauthorized using.

Main Specification

Panel	Size	43 Inch
	Type	TFT
	Brand	LG
	Display Size	941.18529.416mm (HV)
	Display Ratio	16:9
	Resolution	1920*1080
	Brightness	450nits
	Contrast Ratio	1100:1
	Visual Angle	89/89/89/89
	Response Time	10ms
Touch Screen	Tech	PCAP Capacitive Touch (option Infrared IR touch)
	Points	10 touch points (Option)
Protection glass	3.5mm anti-explosion tampered glass
Computer (optional)	Windows: 1037U/J1900/i3/i5/i7 CPU, RAM 4G/8G/16G, SSD 64G/128G; (optional)
	Android OS: 5.1 or 7.1; RK3288/3399 quad core CPU, 2G/4G RAM, 8G/16G storage; (optional)
Network	Support WIFI, RJ45, optional 3G/4G
Ports	USB, VGA, RS232, Optional HDMI input
Speaker	10W*2
Voltage	AC100-240V 50/60Hz
Working Temperature	0-40℃
Language	Support English and multiple national language
Power Plug standard	Optional standards (European, American etc.)
Shell material	Metal plate
Shell color	White (optional)
Installation	Floor-standing

With Onemark Digital Signage Touch application software can support the display:

image007(001)

Support function features:

● Realize remote multi-distribution play and centralized management.

● Support multi terminals, set all terminals to play the same content or diversified contents.

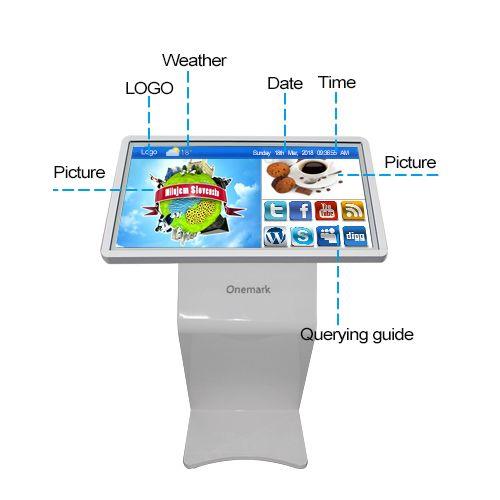

● Split screen to different areas to display pictures, videos, weather, date and time, logo, scrolling subtitle.

● Control display time, schedule remote power on/off.

● Split screen for brand logo, weather, date & time, video, pictures, website, scrolling subtitles.

● Easy to operate. User-friendly.

Especially suitable for brand stores or chain stores that have many display terminals across the city or

Country and need centralized management to promote brand value via unified advertisement releasing Service.

image011(001)

Display Package: optional standard carton box, cardboard box, fumigation-free wooden case, wooden, flight case.
