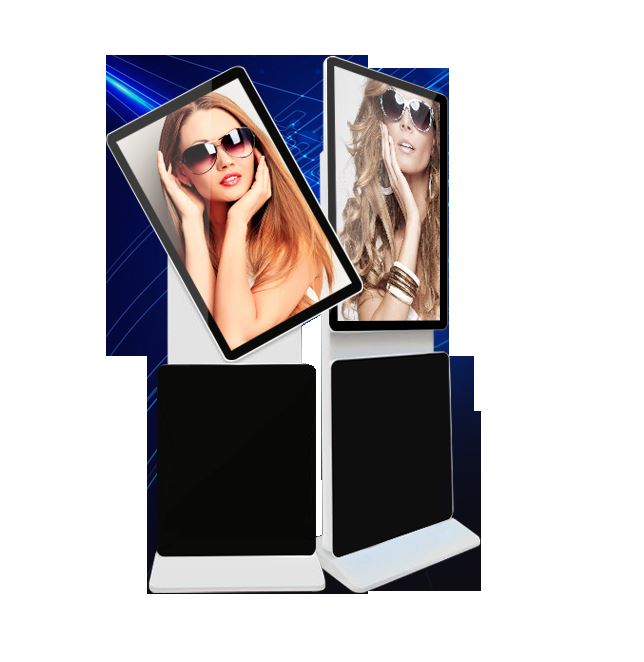

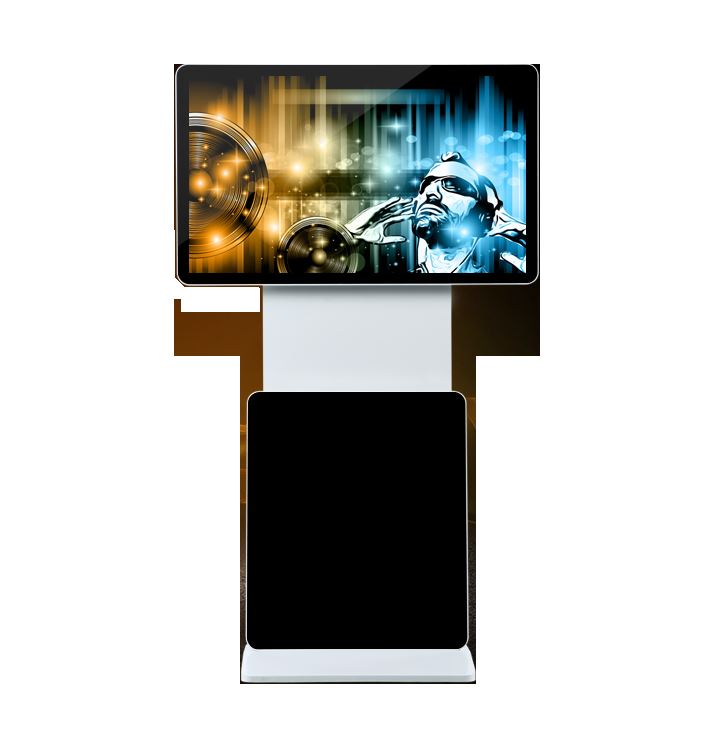

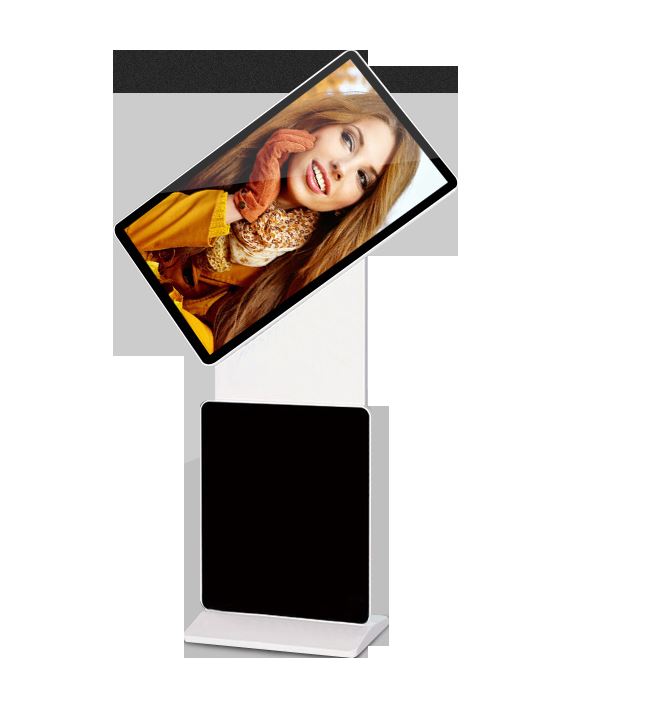

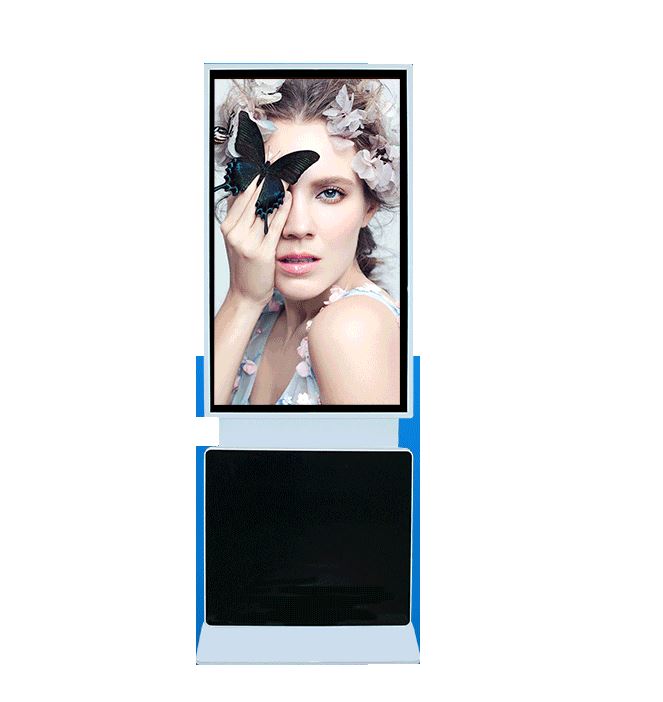

Android Rotation Touch Screen Digital Signage Kiosk With Google Play
Onemark 49inch Rotating LCD Advertising Touch Screen Display with hardware and software all-in-one solution. Easy to be installed and operated.
Floorstanding Touch Screen Digital Signage Solution
Onemark 49inch Rotating LCD Advertising Touch Screen Display with hardware and software all-in-one solution. Easy to be installed and operated. Screen could be rotated to landscape or portrait depend on requirement. Suitable for for shopping mall, chain store, hotel lobby, supermarket, Campus, Hospital, transportation etc. for displaying advertisement, information, brand promotion, location, other information querying etc.
Hardware features:
●LG brand panel TFT type. Resolution 1920*1080;
●Built-in computer. Support Windows/Android OS (optional);
●Support WIFI and RJ45;
●Infrared IR touch. Optional PCAP capacitive touch;
●Screen could be rotated depend on needs.
●Support OEM service, customize design, color and logo;
LG brand panel TFT type; Resolution 1920*1080; 3.5mm tempered glass; IR touch 10 points (optional) Support customizing LOGO.
Metal plate case and aluminum frame. The standard color is black shell and silver frame. The small screen at bottom is optional. Depend on requirement to choose add it or not. Elegant outlook design. Free standing installation (can add wheels). Base is packaged separately with screen body to save shipping cost.
Support customizing color.
This is the back side of the rotated kiosk. Screen could be rotated to different angles. Can add wheels on base for easy moving. Security lock to protect any unauthorized operation.
Main ports of kiosk: USB, HDMI output, RJ45, power plug
(optional these ports are put inside or exposed outside).
Optional Windows, Android OS or HDMI Input.
Windows: 1037U/J1900/i3/i5/i7 CPU, RAM 4G/8G/16G, SSD 64G/128G;
Android OS: 5.1 or 7.1; RK3288/3399 quad core CPU, 2G/4G RAM, 8G/16G storage;
Main Specification
Panel | Size | 49 Inch |
Type | TFT | |
Brand | LG | |
Display Size | 1073.78*605mm (H*V) | |
Display Ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 450nits | |
Contrast Ratio | 1100:1 | |
Visual Angle | 89/89/89/89 | |
Response Time | 12ms | |
Touch Screen | IR touch (optional PCAP capacitive touch) | |
10 points (optional) | ||
Protection glass | 3.5mm anti-explosion tampered glass | |
Computer (optional) | Windows: 1037U/J1900/i3/i5/i7 CPU, RAM 4G/8G/16G, SSD 64G/128G; (optional) | |
Android OS: 5.1 or 7.1; RK3288/3399 quad core CPU, 2G/4G RAM, 8G/16G storage; (optional) | ||
Network | Support WIFI, RJ45, optional 3G/4G | |
Ports | USB, VGA, RS232, Optional HDMI input | |
Speaker | 10W*2 | |
Voltage | AC100-240V 50/60Hz | |
Working Temperature | 0-40℃ | |
Language | Support English and multiple national language | |
Power Plug standard | Optional standards (European, American etc.) | |
Shell material | Metal plate + aluminum frame | |
Shell color | Black+ silver frame | |
Installation | Floor standing | |
Model Dimension | 1929mm*800mm*59.7mm(base: 820mm*448mm) | |
Night Weight | 62KG | |
With Onemark Digital Signage software can support display:
Support function features:
● Realize remote multi-distribution play and centralized management.
● Support multi terminals, set all terminals to play the same content or diversified contents.
● Split screen to different areas to display pictures, videos, weather, date and time, logo, scrolling subtitle.
● Control display time, schedule remote power on/off.
● Split screen for brand logo, weather, date & time, video, pictures, website, scrolling subtitles.
● Easy to operate. User-friendly.
Especially suitable for brand stores or chain stores that have many display terminals across the city or
Country and need centralized management to promote brand value via unified advertisement releasing Service.
Package: optional standard carton box, cardboard box, fumigation-free wooden case, wooden, flight case.
